Connect to Databricks

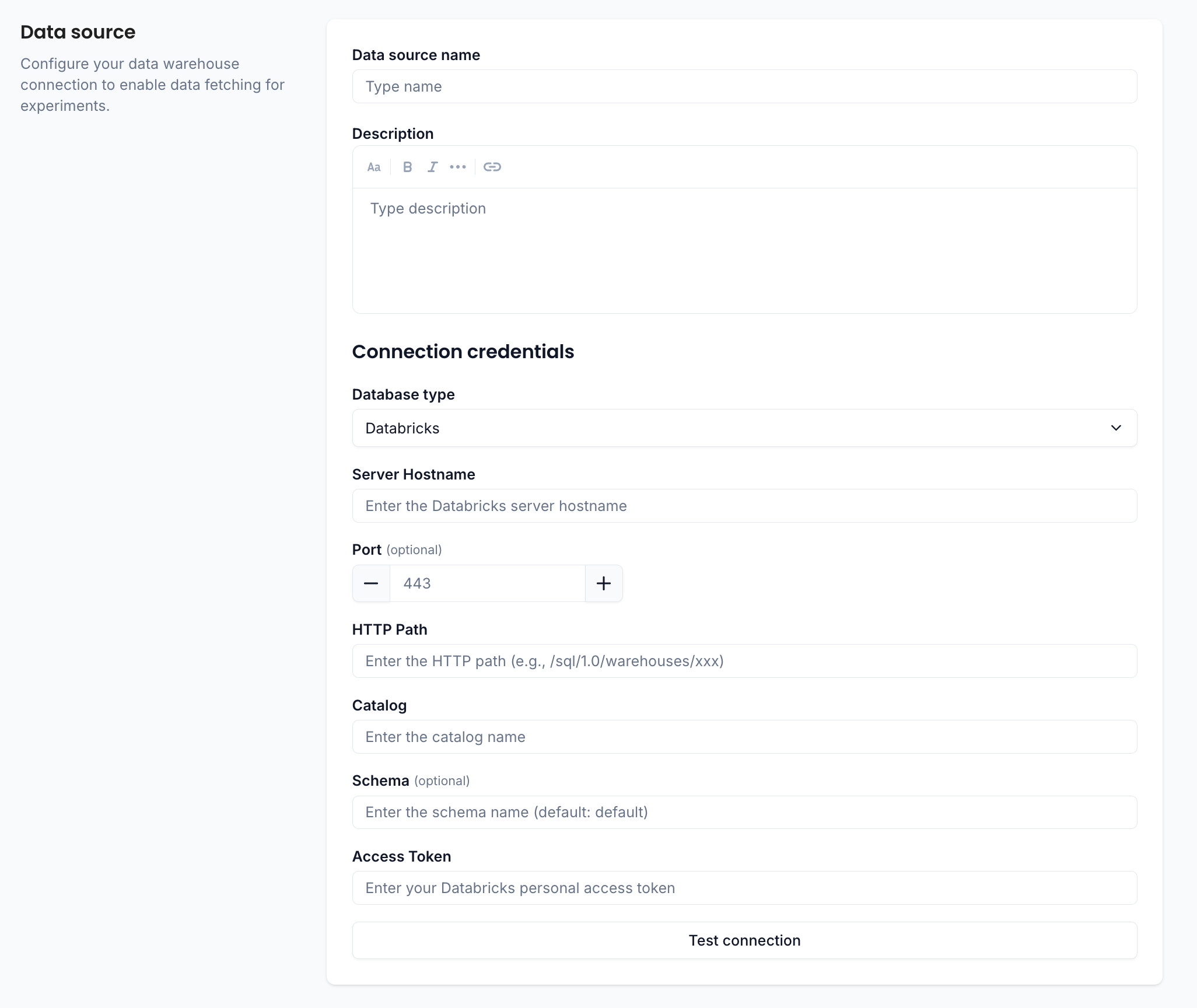

Navigate to Settings → Data Sources and click Add data source. Give your data source a name and optional description, then select Databricks from the Database type dropdown.
Connection credentials
| Field | Description |
|---|---|
| Server Hostname | The Databricks server hostname |
| Port (optional) | Connection port (default: 443) |
| HTTP Path | The HTTP path to your SQL warehouse (e.g., /sql/1.0/warehouses/xxx) |
| Catalog | The Unity Catalog name |
| Schema (optional) | The schema to use. Defaults to default if not specified |
| Access Token | A Databricks personal access token |
Test the connection
Click Test connection at the bottom of the form. If everything is configured correctly, you'll see a green "Connected" confirmation.
note
If the test fails, double-check your credentials and make sure ABsmartly's IP addresses are allowed through your Databricks workspace network settings.
Once connected, save the data source and proceed to map your tables.
